Key Features

1、Replacing manual labour and human inaccessible pipes to complete the operation.

2、Full-automatic intelligent operation, high coating quality, stop pipeline corrosion, prevent leakage.

3、Comes with lithium battery power supply, wireless remote control, video real-time monitoring.

Core Value：Adopting wireless power and remote monitoring, it can work continuously for a long time without external power supply and communication cable, with high quality and fast mending。

Table of pipe diameter division and patching efficiency

Application Scenarios

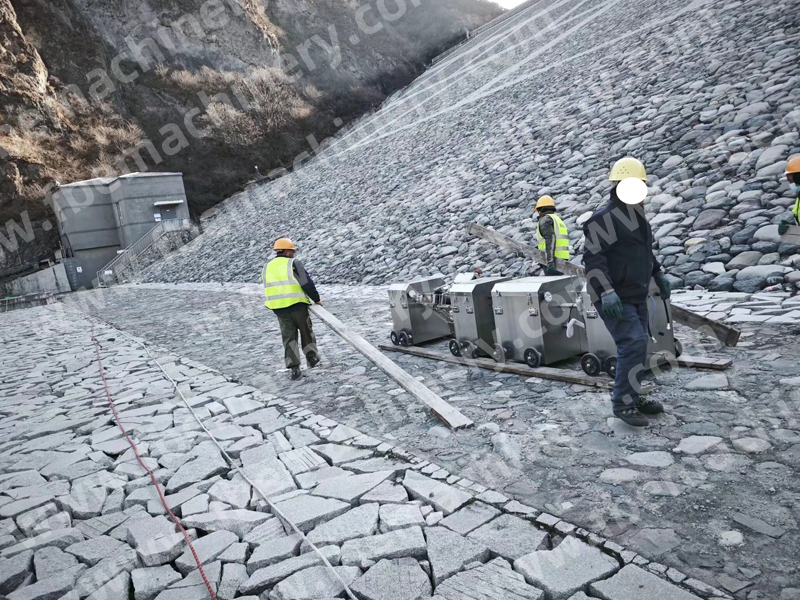

All Terrain Pipeline Applications

Device Parameters

Applicable pipe diameter: 8"-52"

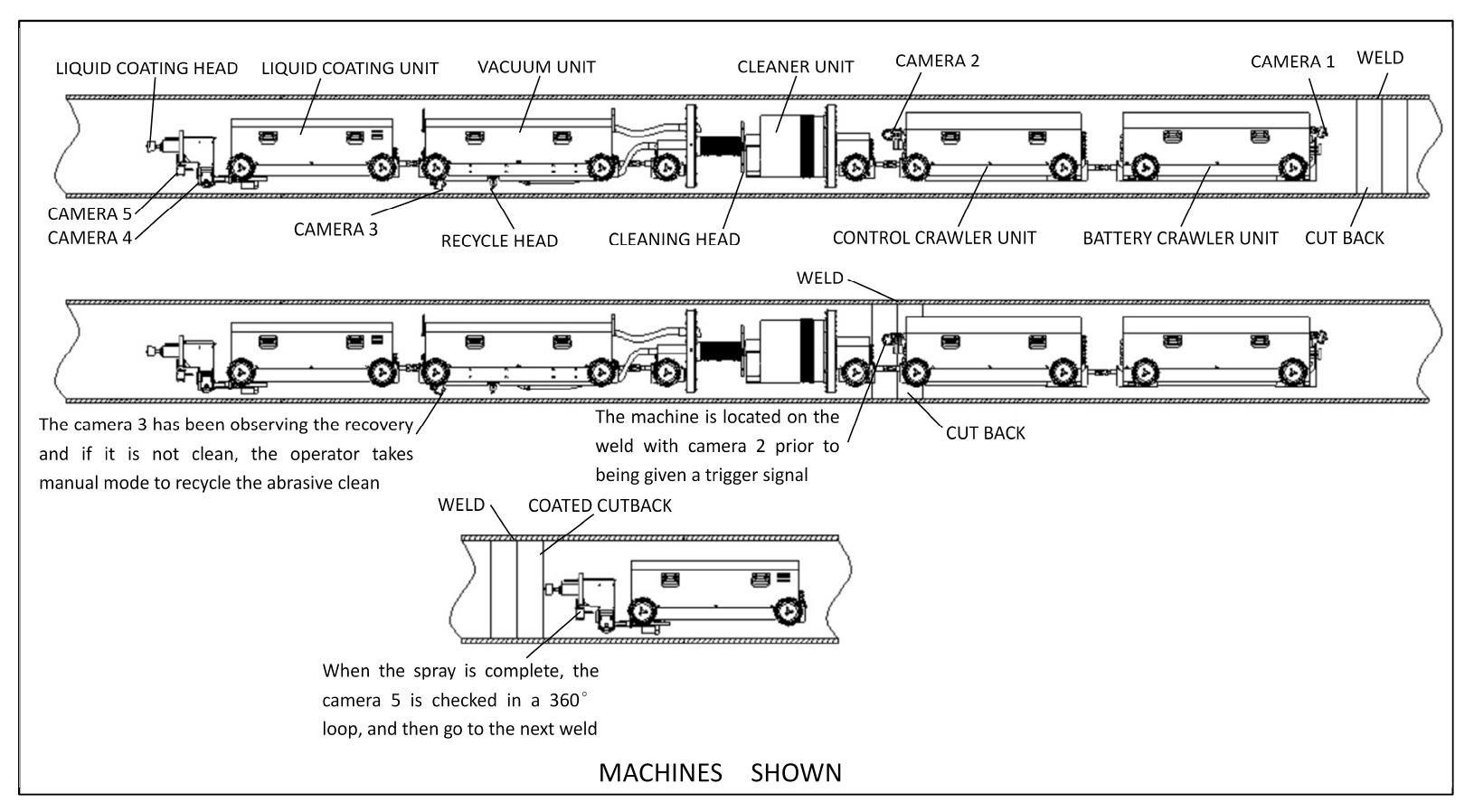

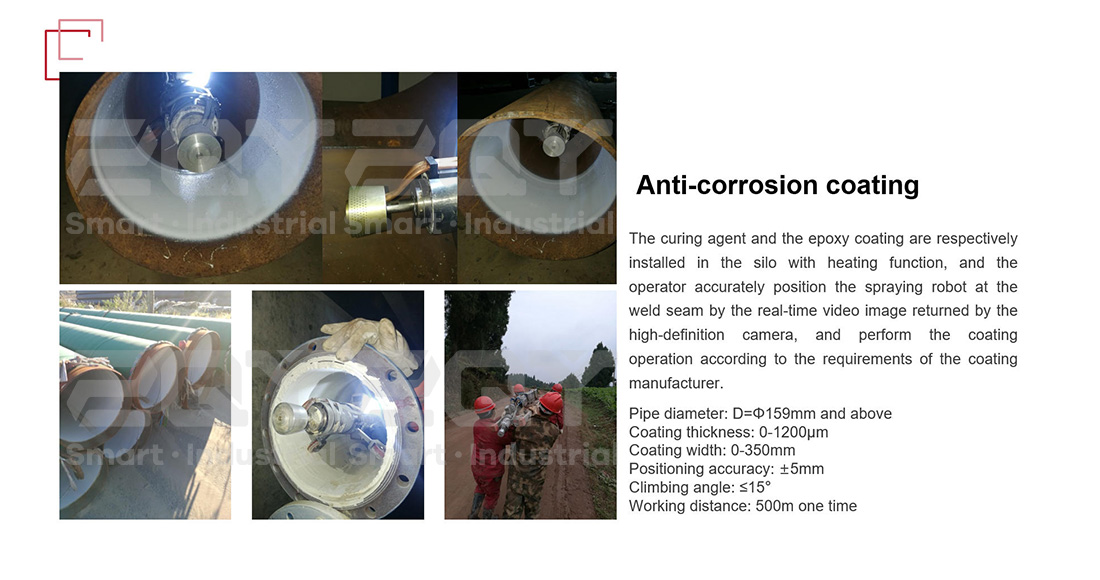

This robotic system supports long-distance internal field joint coating operations:

1. Wireless remote control up to 1,500 m inside the pipeline

2. Up to 12 hours of continuous operation, supported by replaceable battery packs

3. Multiple HD cameras for weld joint positioning, real-time process monitoring, and full video recording for project records

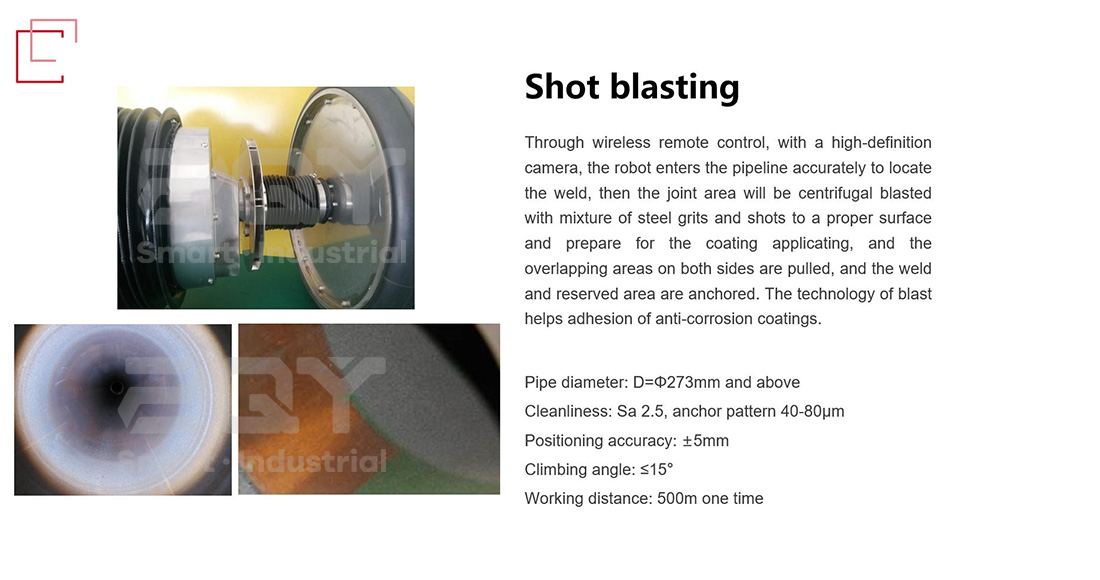

4. Integrated abrasive blasting using steel grit to reach SA 2.5 surface cleanliness on weld joints

5. One robot compatible with 2–3 adjacent pipe diameters, helping reduce equipment quantity

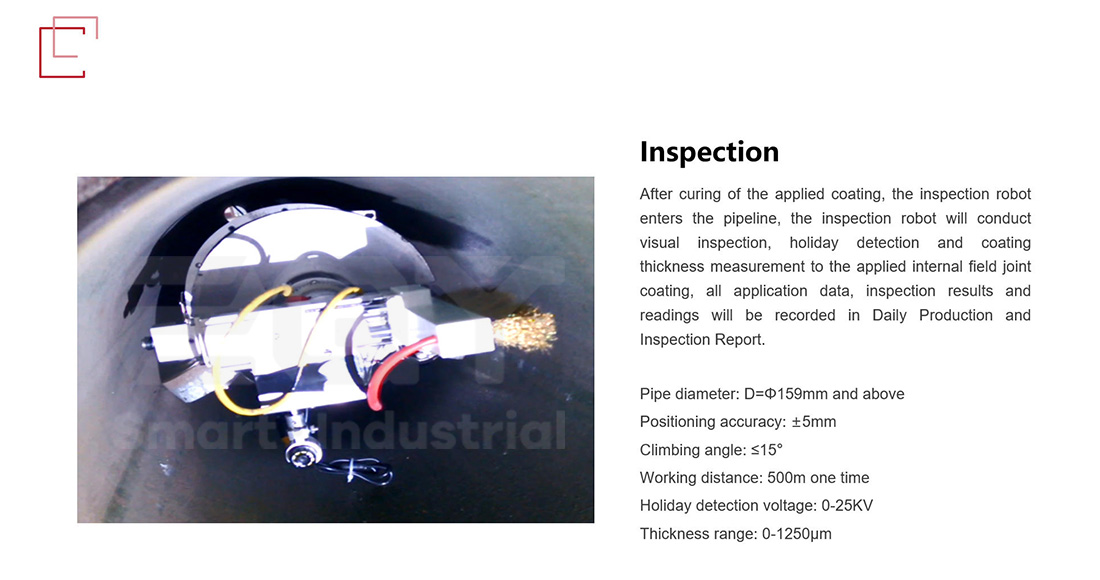

6. Inspection and rescue robot integration for coating thickness checks, holiday detection, secondary repair, and safe recovery if required

7. Modular accessories, on-site engineer training, ongoing technical assistance, and one-year service coverage, with continued service support available thereafter
