◆ Advantages of the machine:

Wide application range, fast coating speed and stable performance. Adhesive coating parameters:

◆ Adhesive coating parameters:

1.  Effective coating length: ≦ 1.5m

2.  Coating diameter: 47-140mm

3.  Coating heads go into the tube from two ends of tube. One side with right thread and the other side with left thread.

4.  Pitch 5mm. (The picture is only for reference)

◆ Technical progress

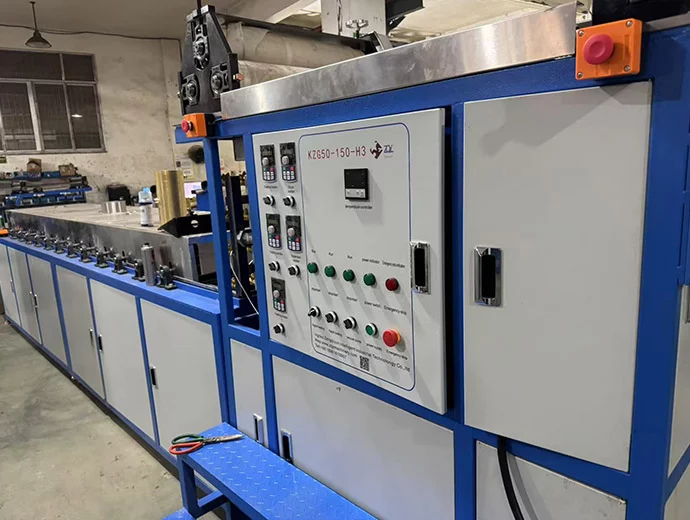

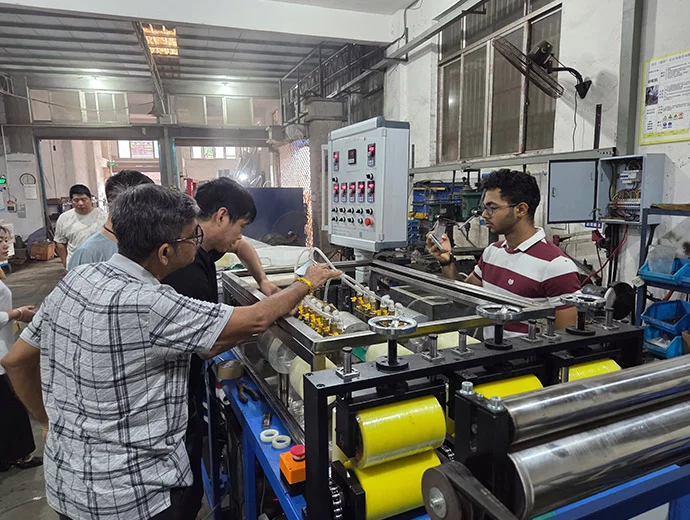

The equipment is mainly composed of hot melt adhesive extruder, heat shrink tube rotating    mechanism and adhesive coating mechanism. The adhesive extruded from the extruder is sent to the coating rod and the extruding gun through the rubber tube. The extruding guns enter   the heat shrink tube placed in the rotating mechanism in advance from both ends. The heat     shrink tube rotates, and the extruding gun extrudes the adhesive strip from the inside out on  the inner wall of the heat shrink tube.

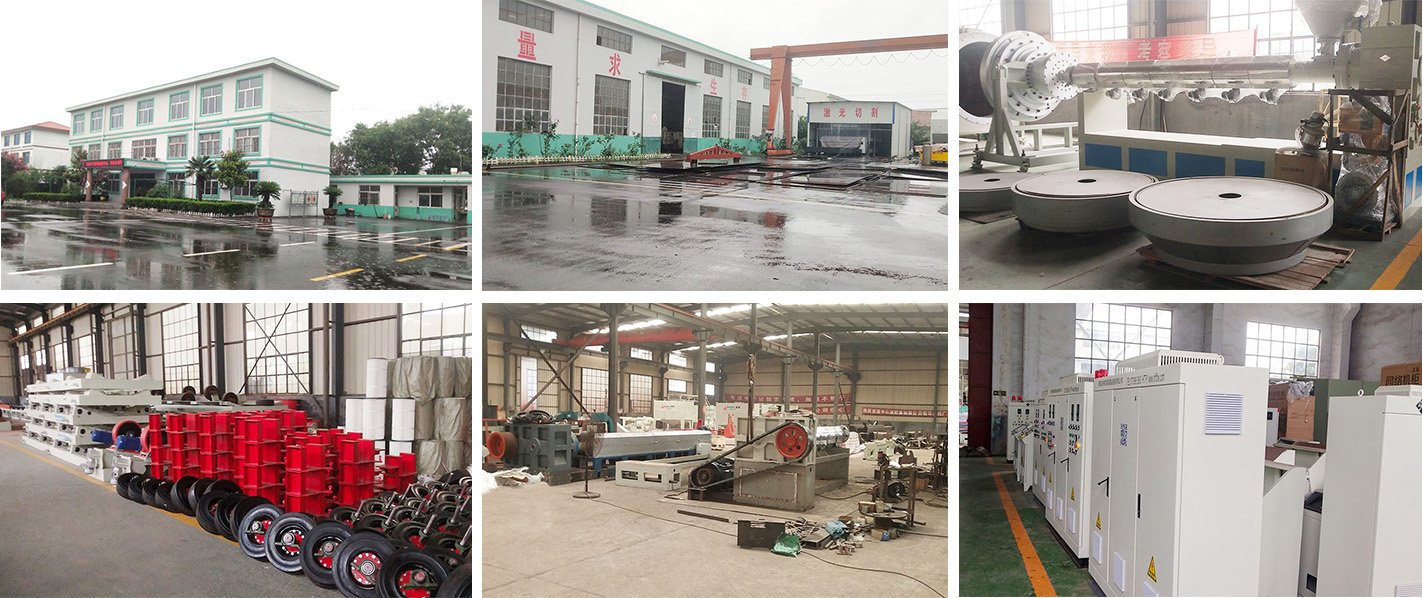

◆ Our Factory
