Wind Tower Internal and External Wall Rust Removal Solution

Professional Shot Blasting Solution for Wind Turbine Tower Surface Preparation

Wind turbine towers are large cylindrical steel structures that require high-quality surface preparation before painting, coating, or anti-corrosion treatment. During tower manufacturing, the internal and external walls of the tower sections may contain rust, oxide scale, welding slag, and surface contaminants. If these impurities are not properly removed, the adhesion and service life of the coating system will be seriously affected.

For this application, a dedicated wind tower internal and external wall shot blasting machine is an efficient and practical solution. The equipment is specially designed for large wind tower sections, large steel pipes, tanks, and other rotating cylindrical workpieces. It can clean both the inner wall and outer wall of the tower section and provide a uniform metallic surface for the next coating process.

Why Wind Tower Sections Need Shot Blasting

Wind power towers are usually exposed to outdoor, coastal, humid, or industrial environments for many years. Therefore, the steel surface must be properly treated before anti-corrosion coating.

The shot blasting machine can remove:

Rust and corrosion layers
Oxide scale
Welding slag
Surface dust and impurities
Old coating residues in some repair applications

After blasting, the tower surface obtains a clean and uniform metallic finish. This improves the bonding strength between the steel surface and the coating layer, helping the wind tower achieve better long-term corrosion resistance.

How the Equipment Works for Wind Tower Rust Removal

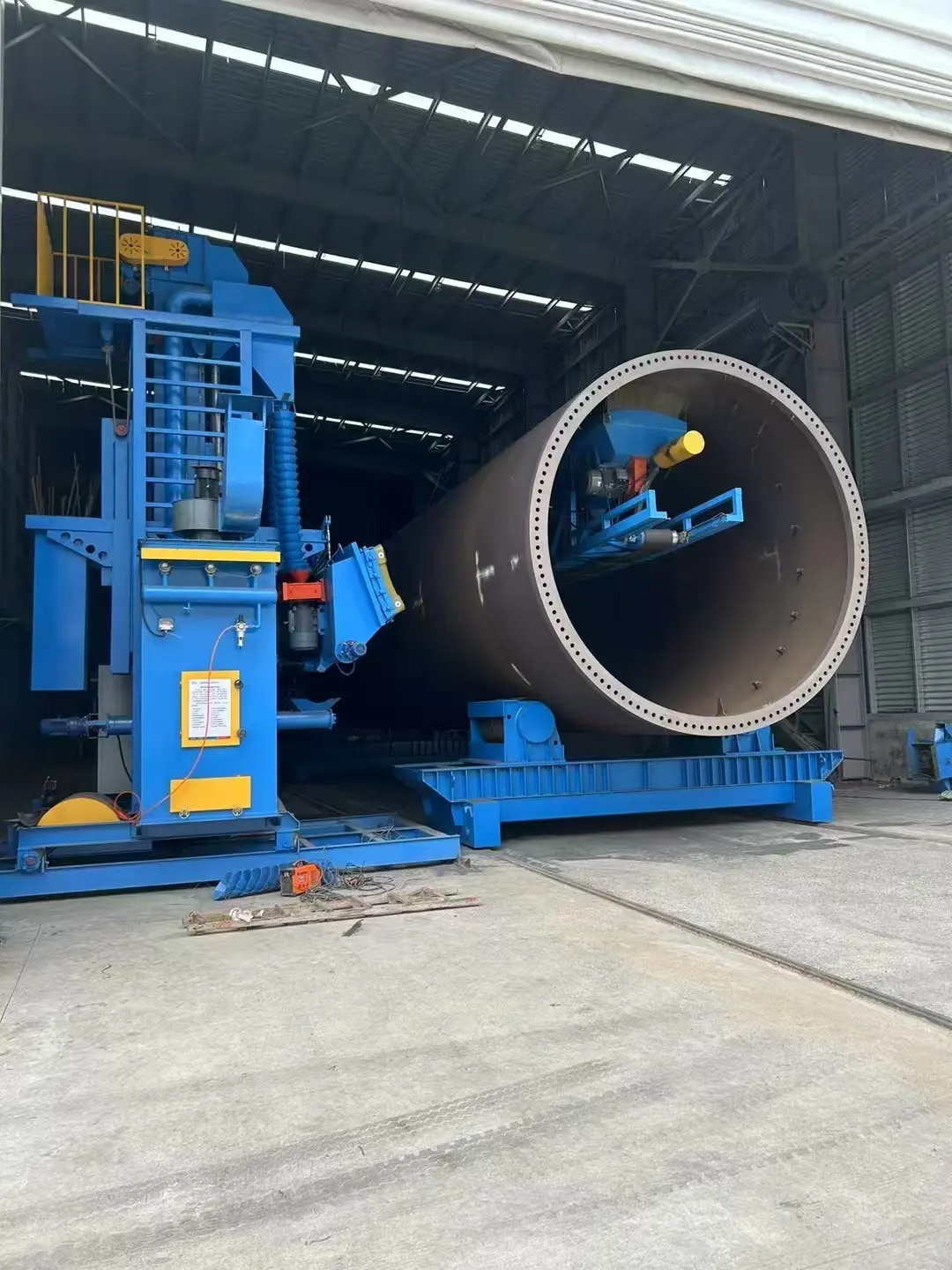

The wind tower section is placed on a rotating support system. During operation, the tower section rotates slowly and continuously. At the same time, the movable shot blasting machine moves along the tower body or works at the required cleaning position.

High-speed steel shots are projected onto the internal or external wall surface of the tower section. The impact force removes rust, scale, and welding residues from the steel surface. The used shots then fall into the recovery system, where they are cleaned, separated, and reused.

This process allows the equipment to clean large-diameter wind tower sections efficiently without building a very large blasting room. It is especially suitable for wind tower manufacturers that need stable cleaning quality, high efficiency, and lower operating cost.

Application on the External Wall of Wind Tower Sections

For the external wall of wind turbine tower sections, the shot blasting machine can be used before primer coating, zinc-rich coating, epoxy coating, polyurethane coating, or other anti-corrosion painting systems.

The machine moves along the tower section while the workpiece rotates. This allows the blasting stream to cover the outer wall evenly. Compared with manual sandblasting, the surface quality is more consistent, the cleaning speed is faster, and the dust can be better controlled.

This solution is suitable for:

New wind tower manufacturing
External wall rust removal before painting
Surface preparation before anti-corrosion coating
Repair and recoating of large cylindrical steel structures
Large steel pipe external wall blasting

Application on the Internal Wall of Wind Tower Sections

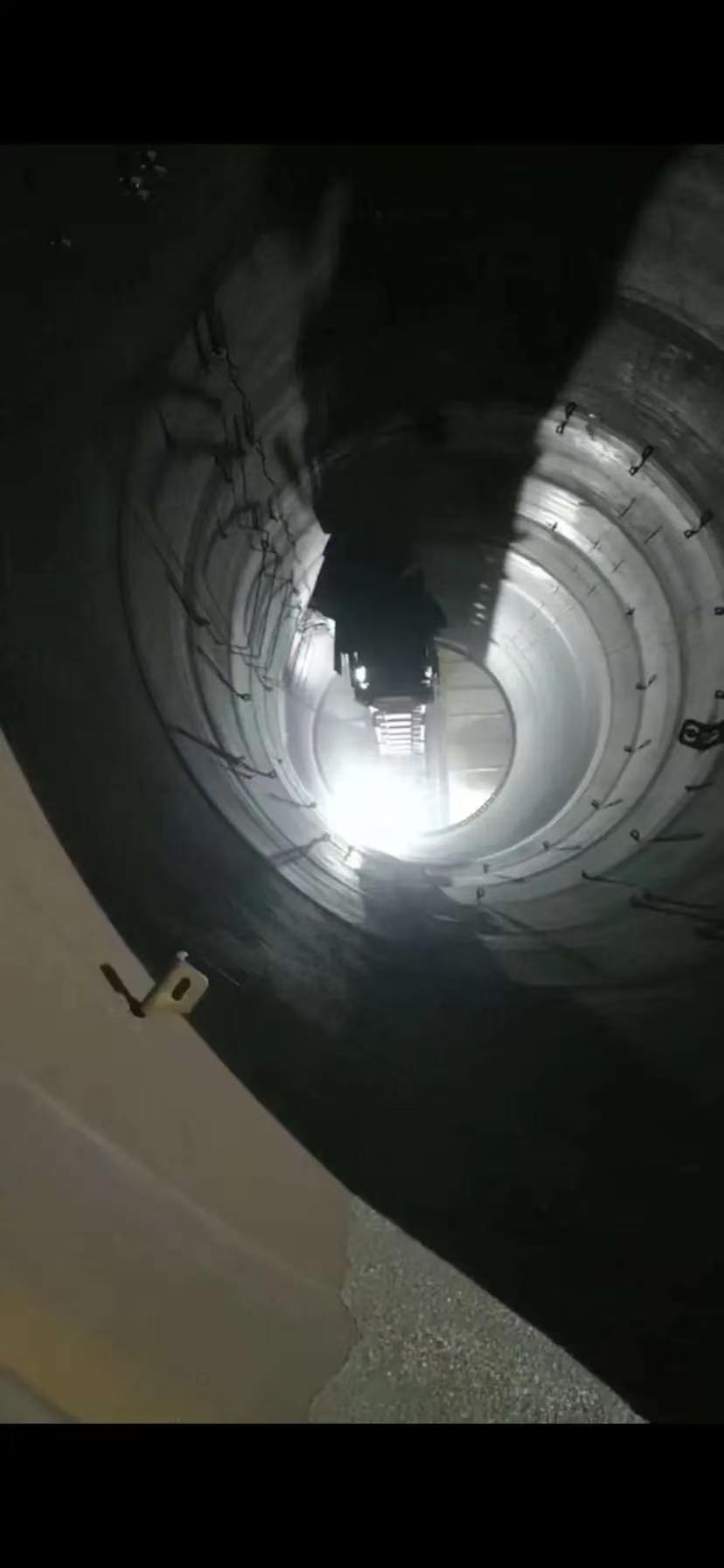

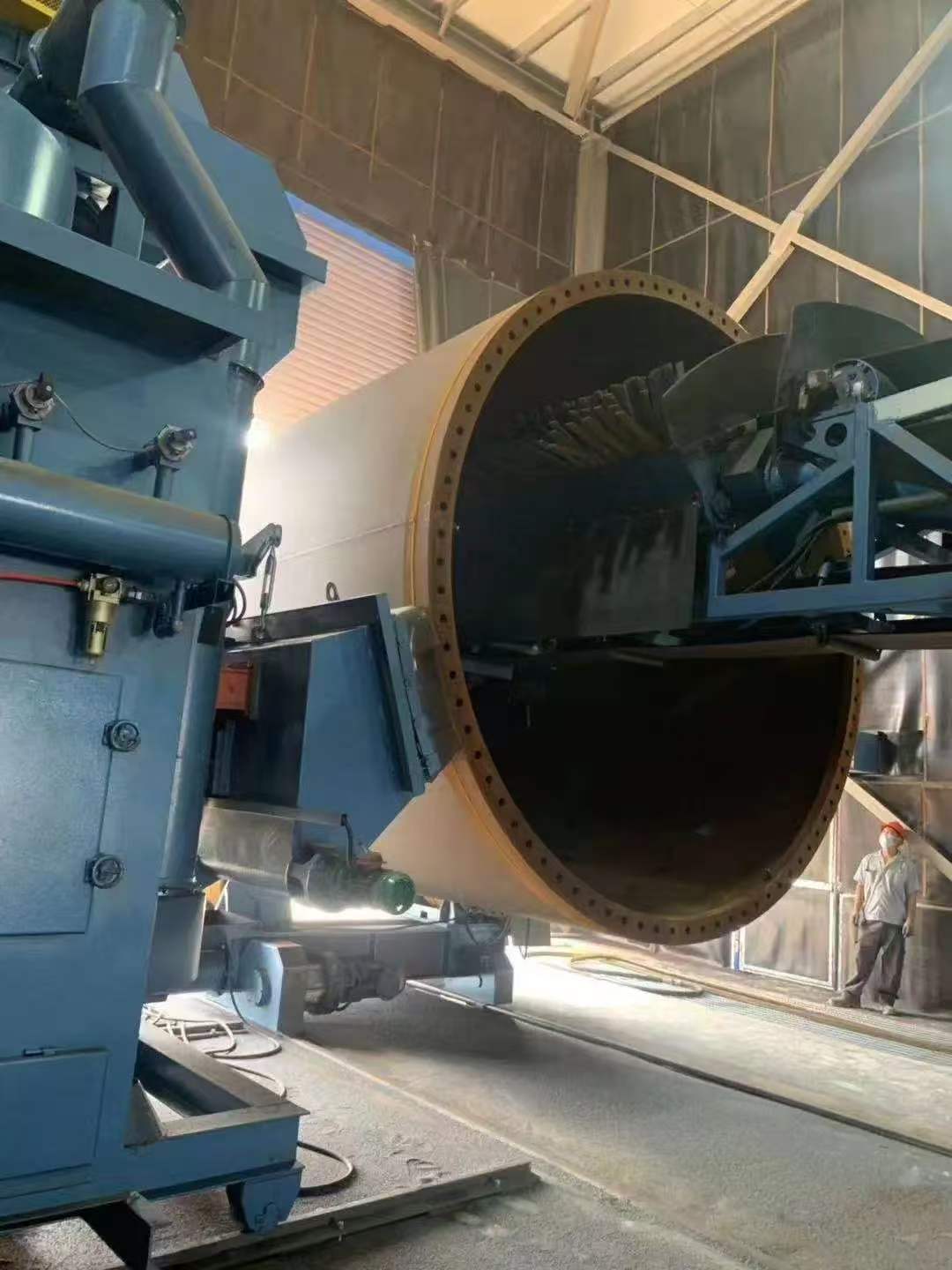

The internal wall of a wind tower section is more difficult to clean manually because of limited space and poor operating conditions. The dedicated wind tower internal wall shot blasting equipment can enter or align with the inner surface cleaning area and perform controlled blasting on the internal wall.

The equipment removes internal rust, welding residues, and oxide scale, creating a clean surface for internal coating or protective painting. This is important for improving the overall corrosion protection of the tower section, especially in humid or offshore wind power environments.

Compared with traditional manual cleaning, the internal wall blasting solution offers better efficiency, lower labor intensity, and more stable surface preparation quality.

Advantages of Using This Shot Blasting Solution

The main advantage of this equipment is that it is designed specifically for large rotating cylindrical workpieces such as wind tower sections and large steel pipes. It is more flexible than a fixed large blasting room and more efficient than manual blasting.

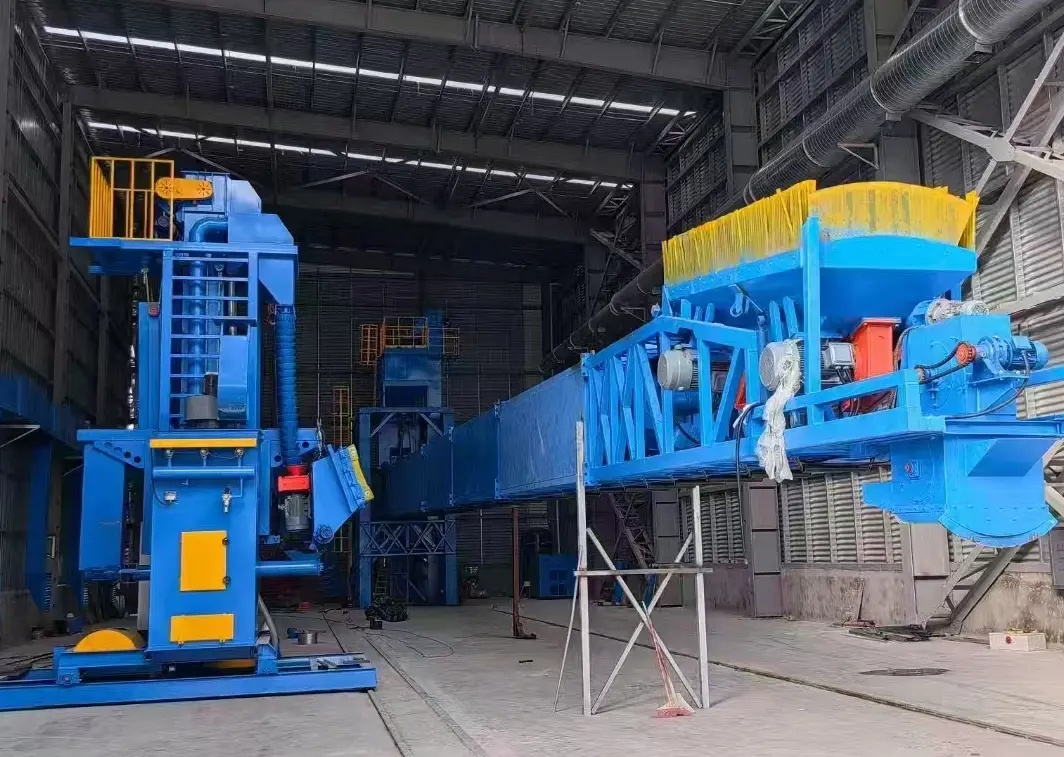

The movable design allows the equipment to adapt to different tower diameters and workshop layouts. According to the production arrangement, the machine can be designed for single-direction or double-direction movement.

The equipment also adopts a reliable sealing structure to reduce abrasive leakage during operation. Steel shots are automatically recovered, separated, and reused, which helps reduce abrasive consumption and operating cost.

In addition, the dust collection system helps control dust generated during blasting. According to the provided technical information, the pulse cartridge dust collector can achieve a dust removal efficiency of ≥99.5%, with dust emission of less than 90 mg/m³.

Recommended Working Process

A typical working process for wind tower internal and external wall rust removal is:

Place the wind tower section on the rotating support system.
Adjust the blasting equipment according to the tower diameter and cleaning position.
Start tower rotation and shot blasting operation.
Clean the internal or external wall surface evenly.
Recover and separate steel shots automatically.
Remove dust through the dust collection system.
Inspect the surface cleanliness and roughness.
Transfer the tower section to the coating or painting process.

This process provides an efficient connection between steel structure fabrication and anti-corrosion coating production.
